| Part No. | VIGD14161 |
|---|---|
| Suitable for | |

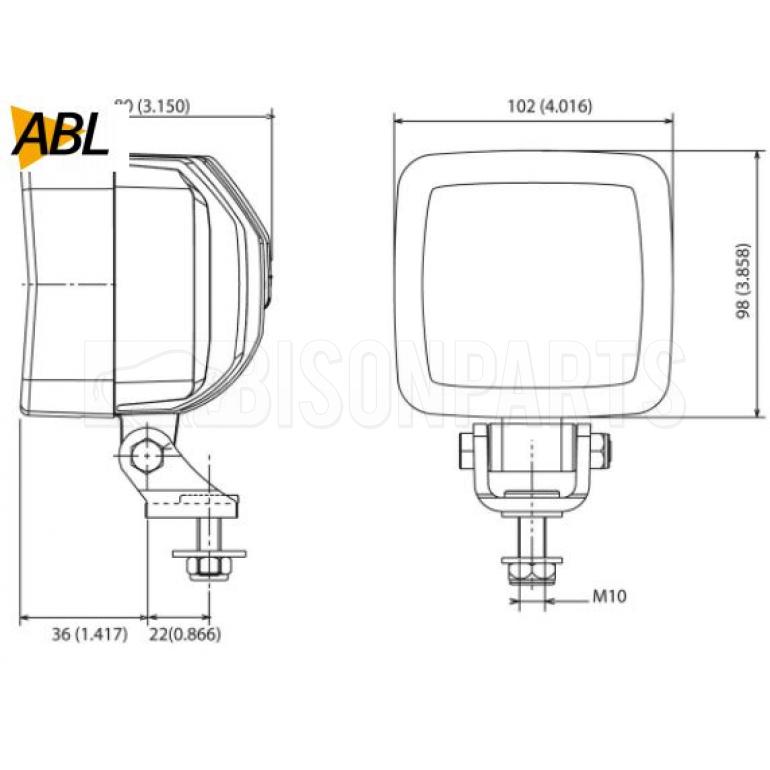

| Dimensions | Length 102mm. Width 80mm. Height 98mm. |
| Brand | Vignal |
- In Stock
- 2–3 working days for delivery
- Need it faster?
Upgrade at checkout for next day delivery (on orders before 2pm)
Product Information
# Voltage - 12 / 100 Volt
# Source - LED
# Consumption - 20 Watt
# Amperage - 0,82 AMP at 24 Volt
# Operational Lumen - 1200 Lumen
# Color Temperature - 6000°K
# Light pattern - Flood
# Connector - AMP 2 pin, DT 2 pin
# Color - Amber, Red, Blue & Crystal
# Mounting - Pedestal or Suspended
# Lens Material - Hardened glass
# IP protection - IP68 - IP69K
# No polarity
# Electronic Thermal Management - Full output at +35°C ambiant, 20 % dimmed at + 50°C ambiant
# Operation Temperatures - -40°C to +85°C
# Load Dump - 130V CONTINUOUS/ 200V 100ms/ 1800V 50µs
# Salt Spray Test - ISO 9227
# Vibration Resistance - 15 Grms, from 24Hz to 2000Hz
# Shock resistance - 60G
# EMC - ISO 13766 - ISO 14982 - ISO 12985 - CISPR25
Small Print
This product is fully interchangeable with original equipment (OE). This is not a genuine part unless stated.
All products are covered by the manufacturer's 12 month warranty.
Any manufacturer or OE part numbers are listed for cross reference and identification purposes only and in no way imply that this is a genuine part.
As models can vary please check with your vehicle registration or chassis number if you don't know the OE number.
All vehicles can have different specifications and variants within the standard model. These variants will fall within the same years as the models this item fits. Unless you know the exact details of your model please contact us before ordering. Especially on the cross over years, the last of the old model is made in the same year as the first of the new model!
