Part No. |
1001-1570 |
Application Notes |
UNIVERSAL APPLICATIONS. |

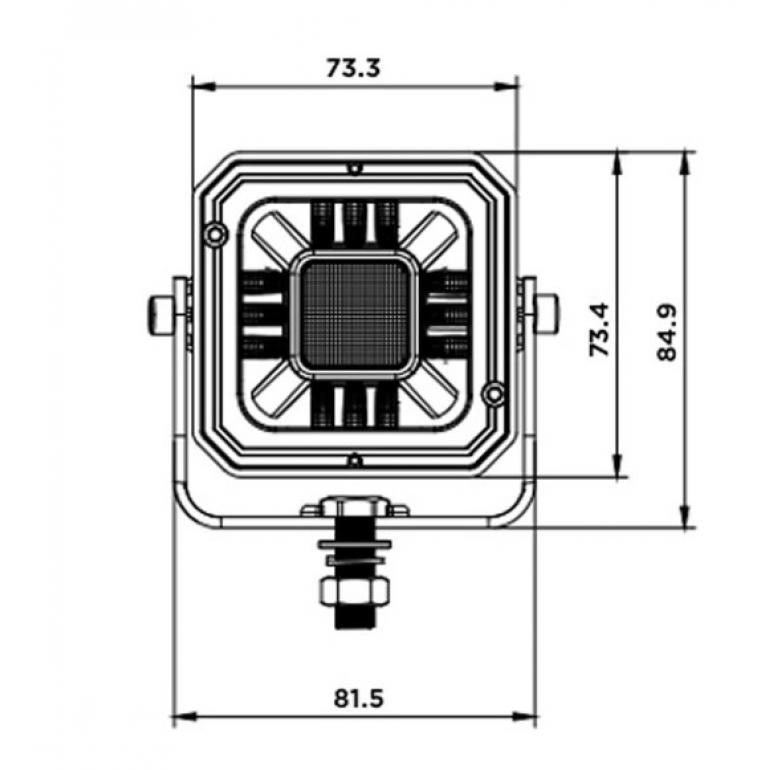

Dimensions |
Height 73.4mm. Width 73.3mm. Depth 65.5mm. |
Brand |
Boreman |
- In Stock
- 2–3 working days for delivery
- Need it faster?
Upgrade at checkout for next day delivery (on orders before 2pm)
Product Information

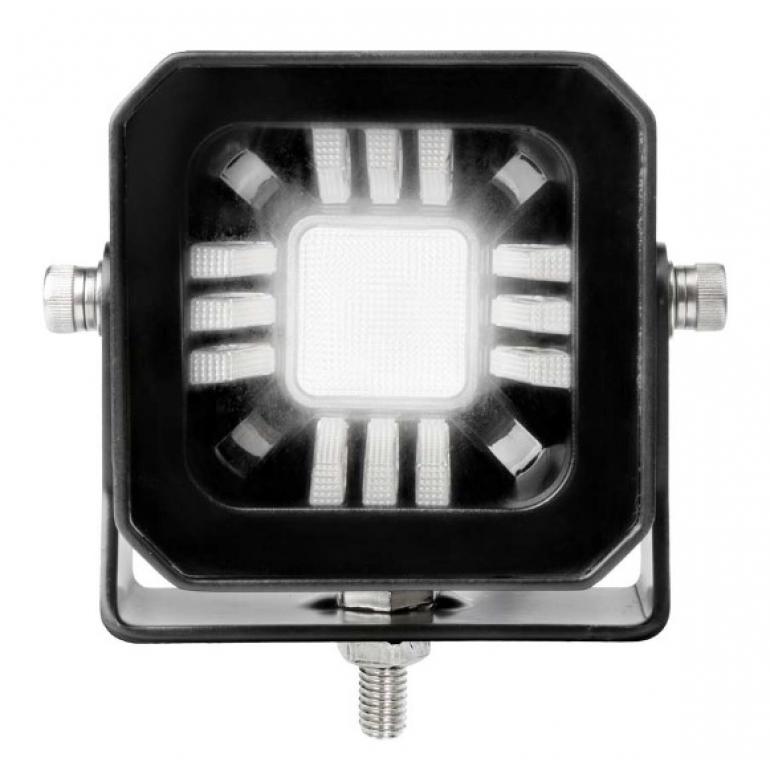

# Work Lamp – with Red and Amber Position Light
# Driving Beam and Position Light for multi-function use
# LED Quantity – 12pcs – Driving Beam – 24W – White

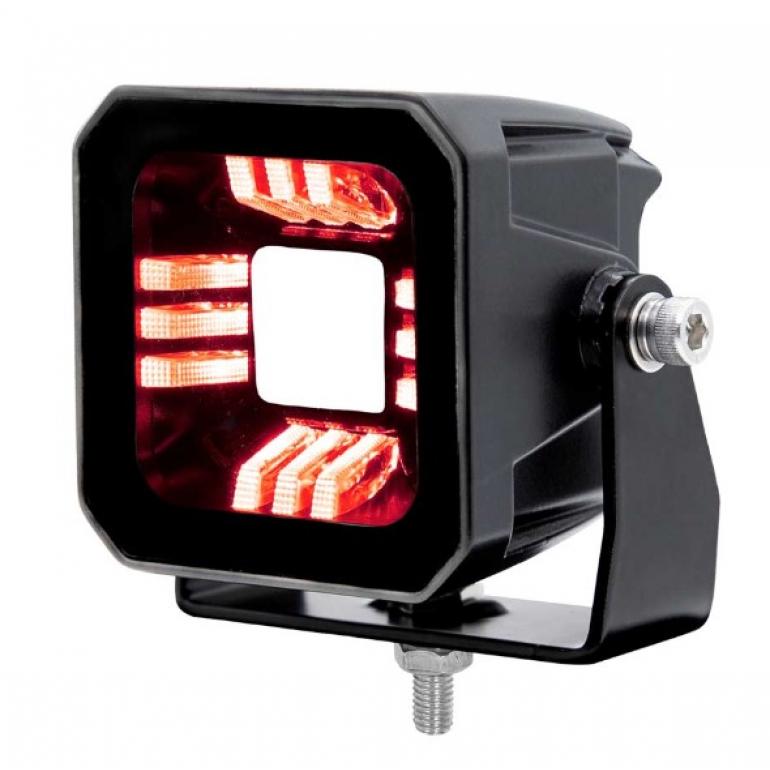

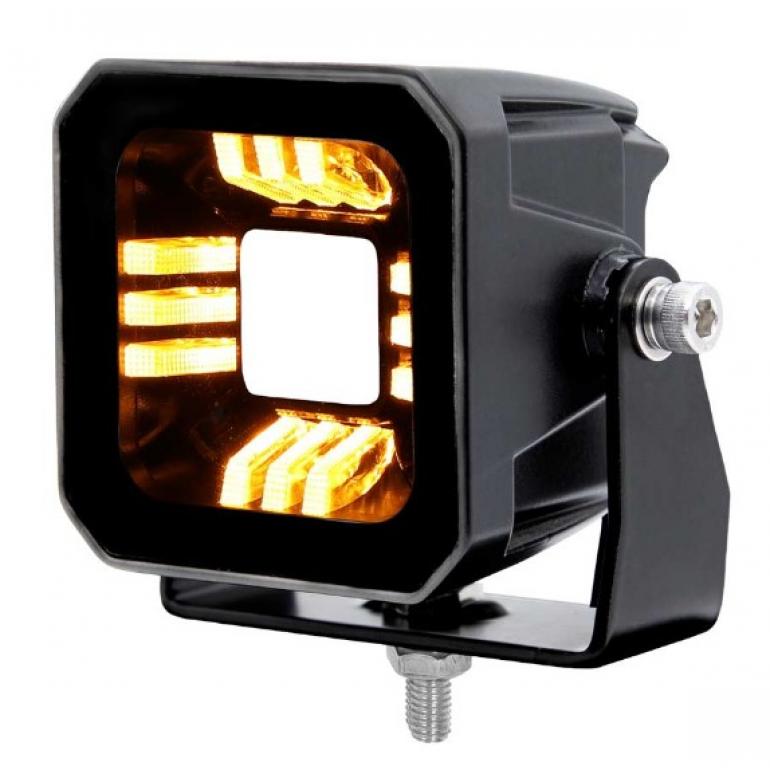

# LED Quantity – 12pcs – Position Light – 0.5W – Red & Amber
# Beam pattern: Flood
# Voltage: 10-30V
# Lumens: 1,000lm
# Current Draw: 2.04amps@12V & 0.94amps@24V
# Housing Material: Die Cast Aluminium
# Mounting Bracket: Stainless Steel
# LUX Rate: 65M
# Working Range Temperature: -40°C ~ +60°C
# Colour Temperature: 6,500K
# Lens Material: Polycarbonate
# UV Resistant and Scratch Resistant
# Connection Method: Cable
# ECE R10
# RoHS Compliant
# IP Rating: IP69K
# Life Span: 30,000+ Hours
# 3 Year Warranty
