TOWBAR RELAY WIRING LOOMS (PKT 3)

Part No.	VAX032
Suitable for	+ – Fiat (1) Talento (2016 - 2021) + – Nissan (1) NV300 (2016 - 2021) + – RENAULT (1) Trafic III (2014 - 2019). + – Vauxhall (2) Vivaro Vivaro B X82 (07/2014 - 12/2019)
Brand	Aftermarket

Product Information

Set of 3 Dedicated Wiring Looms for Towbar Relay
Easily connect your vehicle lights to the relay module.
Brings wires from all your rear lights, ready for you to connect to your relay module.

Simplify the wiring-up of your towbar by using this dedicated kit.
We assume you have already:

*Disconnected your battery.
*Fitted your towbar.
*Fitted your relay module to the left side of your vehicle.
*Wired the towbar to your relay module.
*Wired 12v and Ground to your relay module.

FITTING:
1. Disconnect left upper light cluster and plug the LU breakout male & female connectors in between.

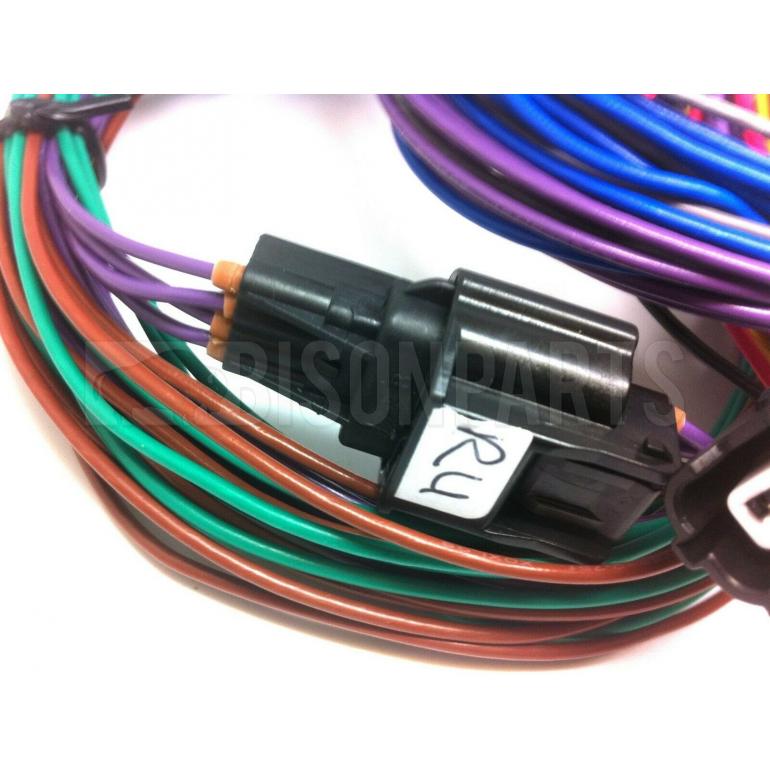

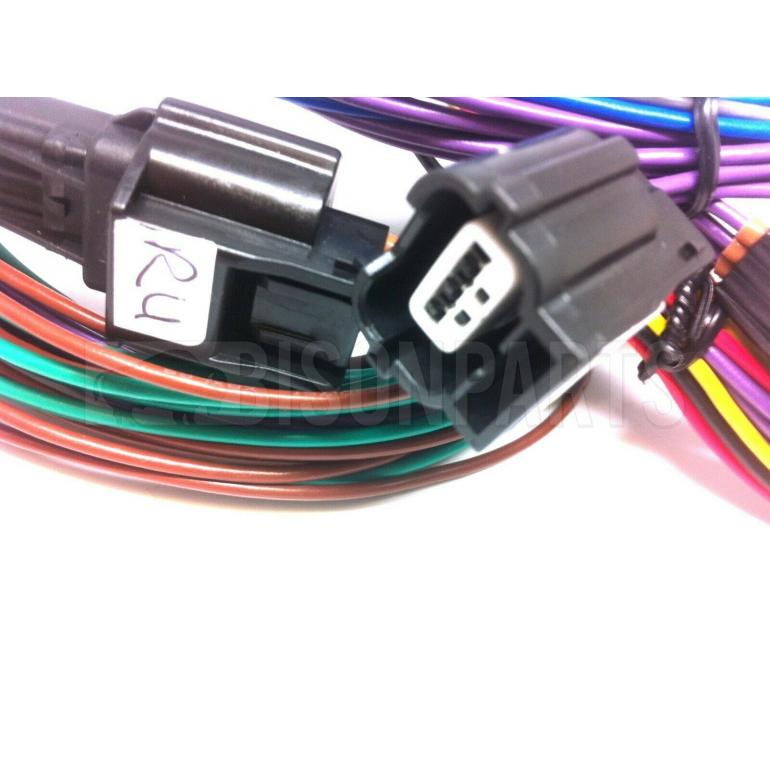

2. Disconnect right upper light cluster and plug the RU breakout male & female connectors in between.
3. Disconnect right lower light cluster and plug the RL breakout male & female connectors in between.
4. Connect loom wires to your relay module. (colour coded for Ryder modules)
Colour code:-
1. Yellow LH turn
2. Blue Fog
4. Green RH turn
5. Brown RH tail
6. Red Stop
7. Black LH tail
R. Grey Reverse

Small Print

This product is fully interchangeable with original equipment (OE). This is not a genuine part unless stated.

All products are covered by the manufacturer's 12 month warranty.

Any manufacturer or OE part numbers are listed for cross reference and identification purposes only and in no way imply that this is a genuine part.

As models can vary please check with your vehicle registration or chassis number if you don't know the OE number.

All vehicles can have different specifications and variants within the standard model. These variants will fall within the same years as the models this item fits. Unless you know the exact details of your model please contact us before ordering. Especially on the cross over years, the last of the old model is made in the same year as the first of the new model!
