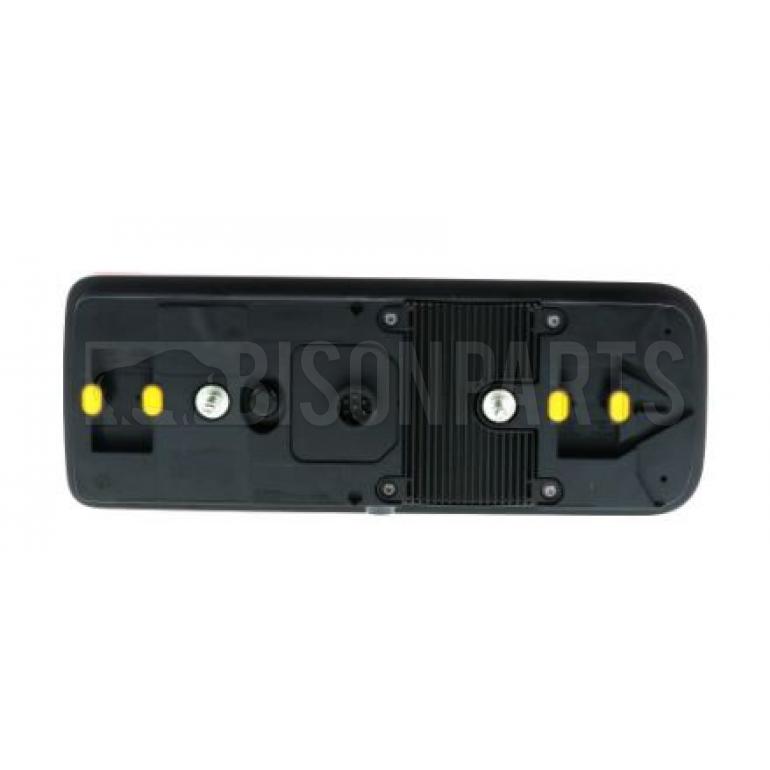

LED REAR COMBINATION LAMP PASSENGER SIDE LH

Part No.	VIG161000
Suitable for	ASCA Trailer. Benalu Trailer. Chereau Trailer. Schmitz Trailer (12/2016 Onwards).

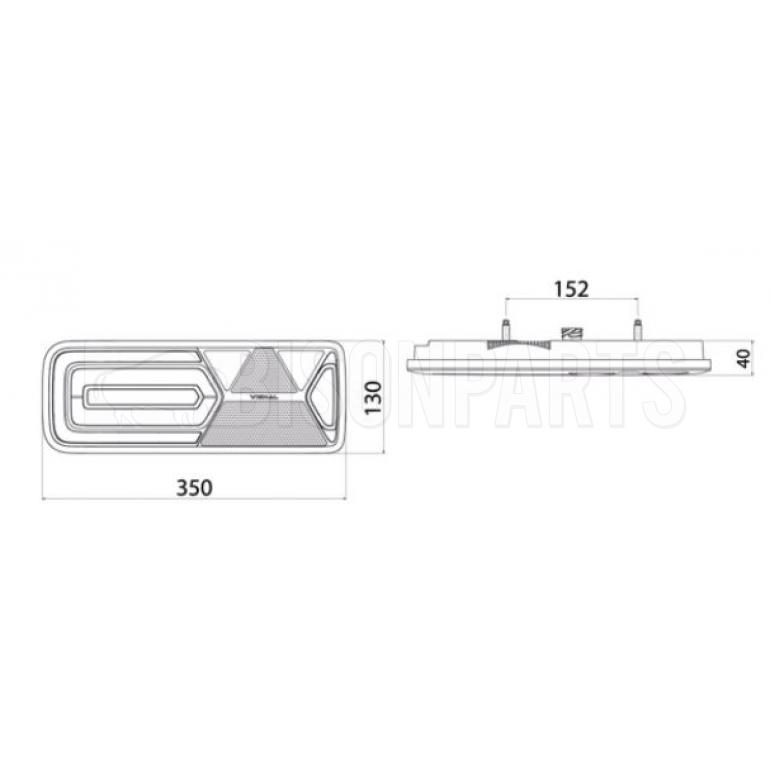

Dimensions	Length 350mm. Width 130mm. Depth 40mm. Fixation Bolt Distance 152mm.
Brand	Vignal

• In Stock
• 2-3 working days for delivery
• Upgrade at checkout for next day delivery (on orders before 2pm)

Product Information

# Compact and ultra slim, it resents options which make it simplier to fit on the vehicle : an integrated resistance to control the indicatore failure, additional connectors to connect flashing side markers but also a reverse work light and license plate lamp... The dynamic indicator is a real plus to add to the vehicle look.

# Main Functions - Dynamic indicator, Stop, Position, Reverse, Fog, Triangular reflector
# Voltage - 24 Volt
# Source - LED
# Max Current - Additional connector N° 1 position : 0.5A (15W max), Additional connector N° 2 position : 0.5A (15W max), Additional connector N° 3 reverse : 1A (35W max), Additional connector N° 4 flashing side marker : 0.5A (15W max)
# Connector - AMP 1.5 - 7 pin rear connector
# Mounting Direction - Horizontal
# Lens Material - Polycarbonate
# Specific Functions - Additional connectors
# EMC E2 10R-0516057
# ADR
# ECE E2 16027

Small Print

This product is fully interchangeable with original equipment (OE). This is not a genuine part unless stated.

All products are covered by the manufacturer's 12 month warranty.

Any manufacturer or OE part numbers are listed for cross reference and identification purposes only and in no way imply that this is a genuine part.

As models can vary please check with your vehicle registration or chassis number if you don't know the OE number.

All vehicles can have different specifications and variants within the standard model. These variants will fall within the same years as the models this item fits. Unless you know the exact details of your model please contact us before ordering. Especially on the cross over years, the last of the old model is made in the same year as the first of the new model!
