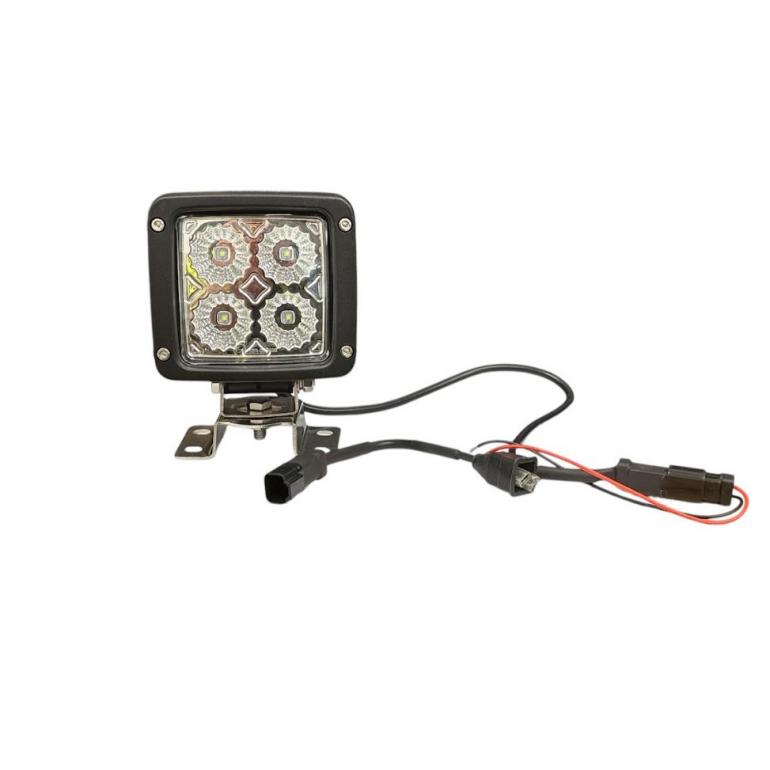

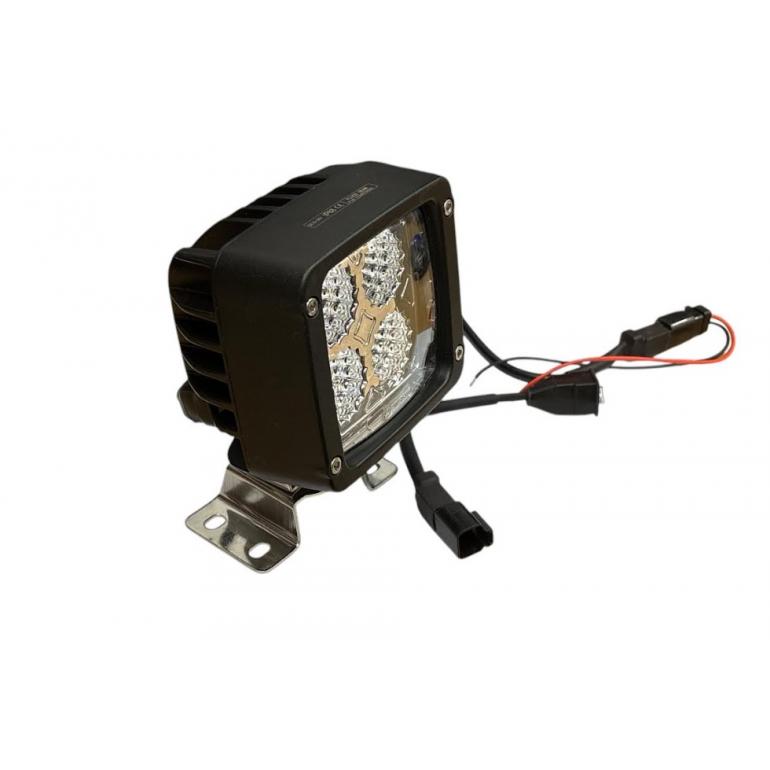

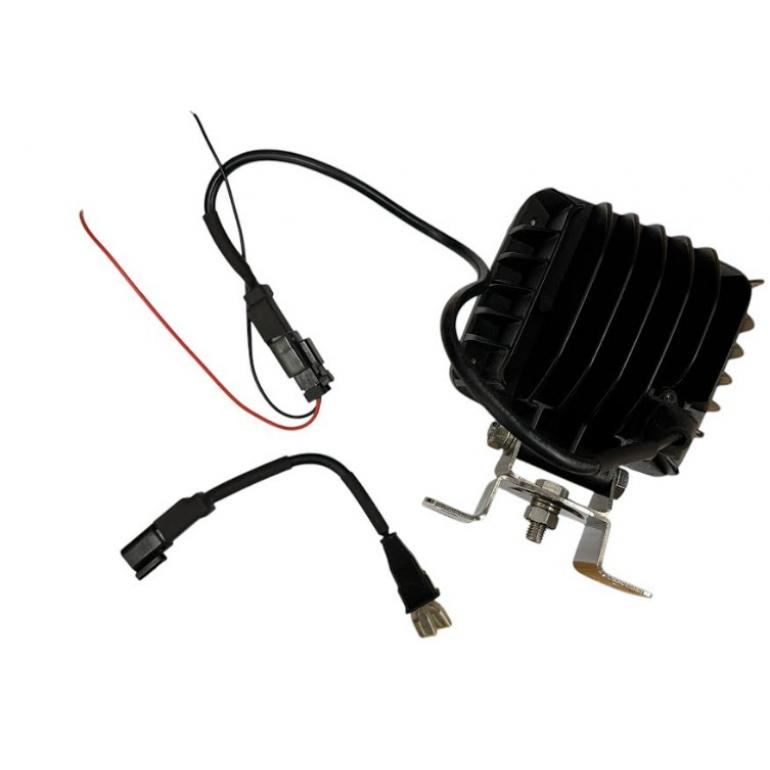

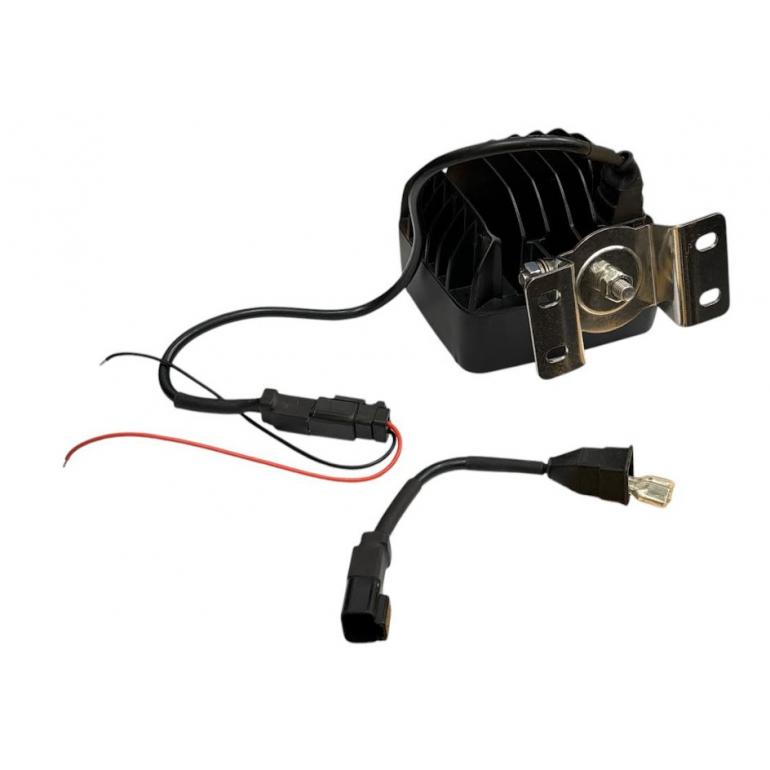

LED 'FLOOD BEAM WORKLAMP 9-36V

Part No.	BP86-909
Application Notes	UNIVERSAL APPLICATIONS.
Dimensions	HEIGHT 98MM. WIDTH 105MM. DEPTH 88MM.
Brand	Bison Parts

• In Stock
• 2–3 working days for delivery
• Need it faster?
  Upgrade at checkout for next day delivery (on orders before 2pm)

Product Information

# 9-36 VOLT DC INPUT
# BEAM TYPE - FLOOD
# LEDS - 4 x 5W CREE LED
# 20 WATT
# RAW LUMENS - 1188
# AMP DRAW (12 / 24V ) - 1.36A / 0.66
# BEAM DISTANCE (0.25LUX@M) - 53
# PEAK BEAM INTENSITY (CD) - 700
# WORKING TEMPERATURE -30 - +60ºC
# THERMAL MANAGEMENT REGULATION
# 50,000+ HOURS LIFE SPAN
# INSTANT ON / OFF FUNCTION
# PROTECTED AGAINST REVERSE POLARITY, VOLTAGE & CURRENT SURGE, RFI / EMC INTERFERENCE
# SHOCK PROOF, WATERPROOF (IP68) & UV SHIELDED
# DIE CAST ALUMINIUM ALLOY (ADC12) HEAT-SINK
# EFFICIENT POLYCARBONATE (PC) LENS REFRACTORS
# LEXAN POLYCARBONATE (PC) FRONT COVER
# SILICONE CABLE
# ANODIZED POLYESTER POWERCOAT

Small Print

This product is fully interchangeable with original equipment (OE). This is not a genuine part unless stated.

All products are covered by the manufacturer's 12 month warranty.

Any manufacturer or OE part numbers are listed for cross reference and identification purposes only and in no way imply that this is a genuine part.

As models can vary please check with your vehicle registration or chassis number if you don't know the OE number.

All vehicles can have different specifications and variants within the standard model. These variants will fall within the same years as the models this item fits. Unless you know the exact details of your model please contact us before ordering. Especially on the cross over years, the last of the old model is made in the same year as the first of the new model!
