| Part No. | VIGD14156 |
|---|---|
| Suitable for | |

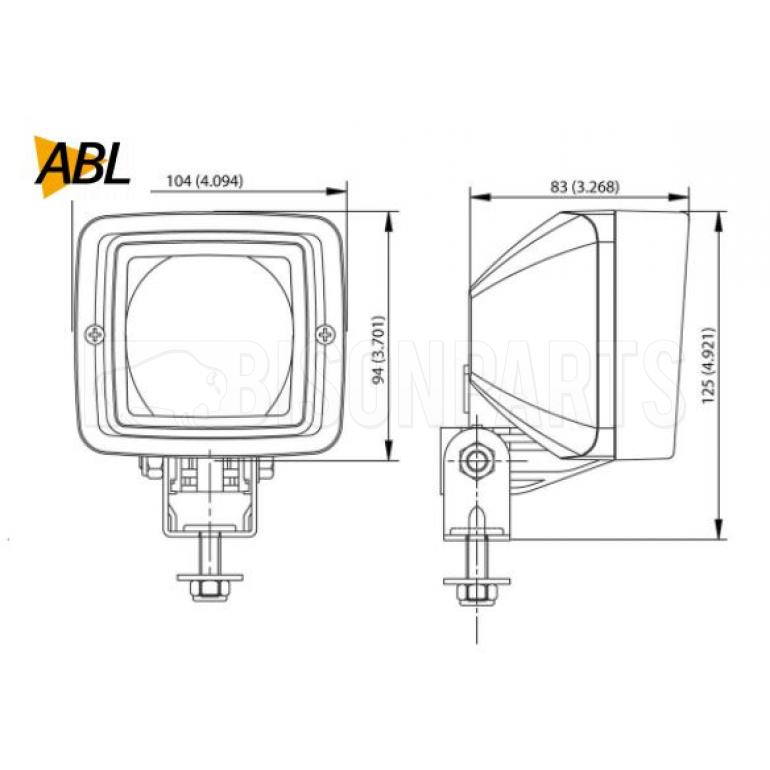

| Dimensions | Length 104mm. Depth 83mm. Height 94mm. |
| Brand | Vignal |
Product Information
# Voltage - 12V, 24V, 36V, 48V, 80V
# Source - HALOGEN
# Bulb - H3 BULB 70W max
# Amperage - 2,92 AMP at 24V
# Light pattern - Flood
# Connector - AMP, DT, grommet, wire compression seal, cable compression seal PG7/PG9
# Color - Amber, red, blue, crystal
# Mounting - Pedestal, suspended, side mount, flush mount
# Lens Material - Hardened glass
# Housing Material - Black fibre reinforced plastic
# Shape - Square
# IP protection - IP54 (grommet) - IP66 - IP69K (connectors)
# Operation Temperatures - -40°C to +85°C
# Salt Spray Test - ISO 9227
