| Part No. | VIGD14852 |
|---|---|
| Suitable for | |

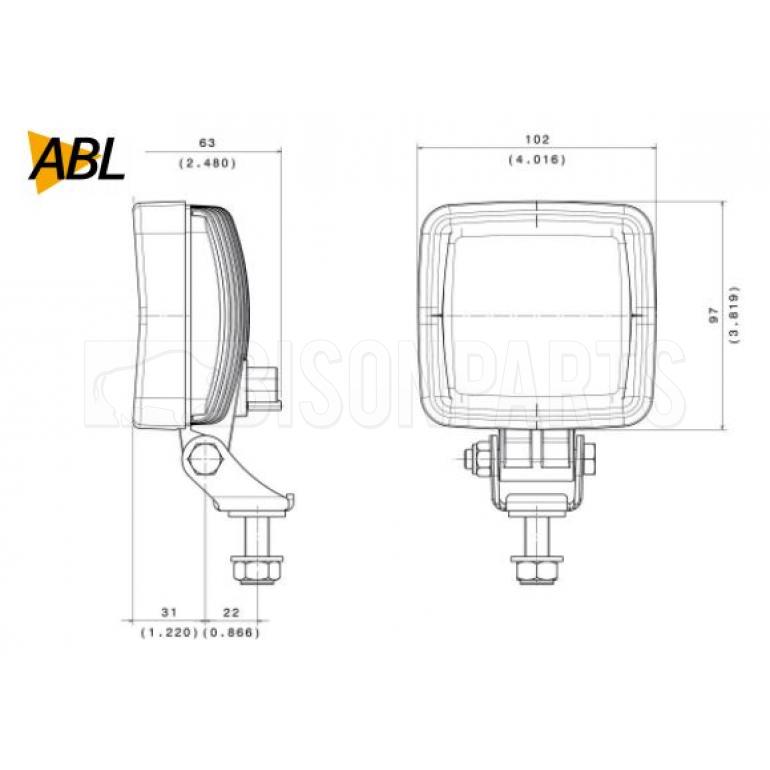

| Dimensions | Length 101mm. Depth 57mm. Height 97mm. |
| Brand | Vignal |
Product Information
# Voltage - 12 / 24 Volt
# Source - LED
# Consumption - 29W
# Amperage - 1,2 AMP at 24V
# Operational Lumen - 2000 Lumen
# Color Temperature - 6000°K for crystal version
# Light pattern hardened glass lens - Asymmetrical flood, Flood, Long range
# Light pattern plastic lens - Flood
# Light pattern plastic cover lens - Asymmetrical flood, Flood
# Connector - AMP 2 pin, DT 2 pin
# Color - Crystal - Amber (hardened glass, plastics); Amber - Red - Blue (plastics)
# Mounting - Pedestal, suspended
# Lens Material - Hardened glass, plastic cover lens, plastic lens
# Housing Material Aluminium
# IP protection - IP68 - IP69K
# Polarity - Protected against reverse voltage
# Electronic Thermal Management - Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant
# Operation Temperatures - -40°C to +85°C
# Load Dump - 36V CONTINUOUS / ISO 7637-2 Pulse 5a
# Salt Spray Test - ISO 9227
# Vibration Resistance - 15 Grms, from 24Hz to 2000Hz
# Shock resistance - 60G
# Lifetime - 30 000 operating hours
# EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Small Print
This product is fully interchangeable with original equipment (OE). This is not a genuine part unless stated.
All products are covered by the manufacturer's 12 month warranty.
Any manufacturer or OE part numbers are listed for cross reference and identification purposes only and in no way imply that this is a genuine part.
As models can vary please check with your vehicle registration or chassis number if you don't know the OE number.
All vehicles can have different specifications and variants within the standard model. These variants will fall within the same years as the models this item fits. Unless you know the exact details of your model please contact us before ordering. Especially on the cross over years, the last of the old model is made in the same year as the first of the new model!
