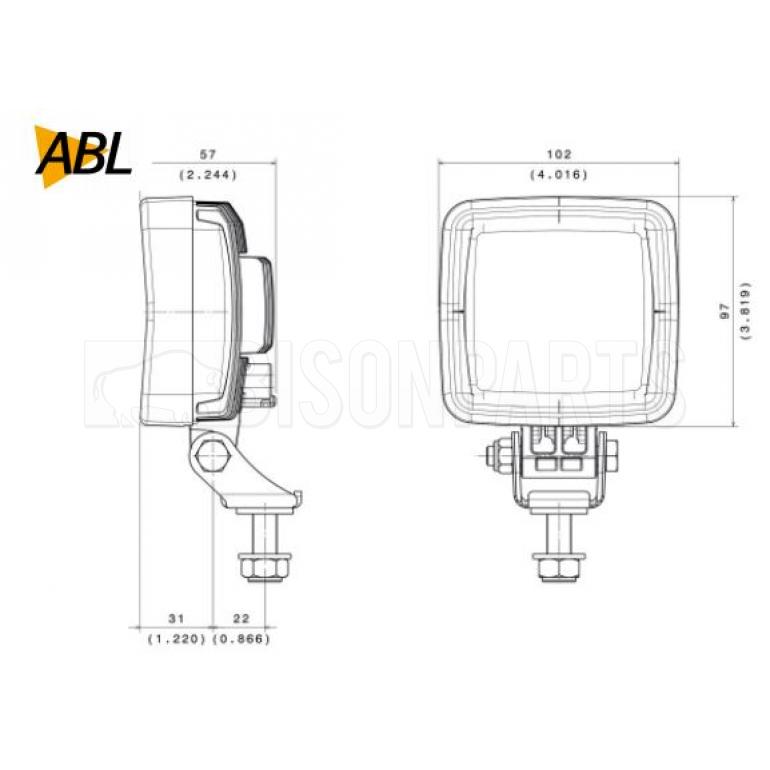

LED 12/24 VOLT WORK LAMP

Product Information

# Voltage - 12 / 24 Volt
# Source - LED
# Consumption - 20W
# Amperage - 0,85 AMP at 24V
# Operational Lumen - 1500 Lumen
# Color Temperature - 6000°K for crystal version
# Light pattern hardened glass lens - Asymmetrical flood, Flood, Long range
# Light pattern plastic lens - Flood, Diffused flood
# Light pattern plastic cover lens - Asymmetrical flood, Flood, Diffused flood
# Connector - AMP 2 pin, DT 2 pin
# Color - Crystal - Amber (hardened glass, plastics); Amber - Red - Blue - Diffused white (plastics)
# Mounting - Pedestal, suspended
# Lens Material - Hardened glass, plastic cover lens, plastic lens
# Housing Material - Bi-material (plastic body and aluminum dissipator
# IP protection - IP68 - IP69K
# Polarity - Protected against reverse voltage
# Electronic Thermal Management - Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant
# Operation Temperatures - -40°C to +85°C
# Load Dump - 36V CONTINUOUS / ISO 7637-2 Pulse 5a
# Salt Spray Test - ISO 9227
# Vibration Resistance - 15 Grms, from 24Hz to 2000Hz
# Shock resistance - 60G
# Lifetime - 30 000 operating hours
# EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
